OPTIONS AVAILABLE

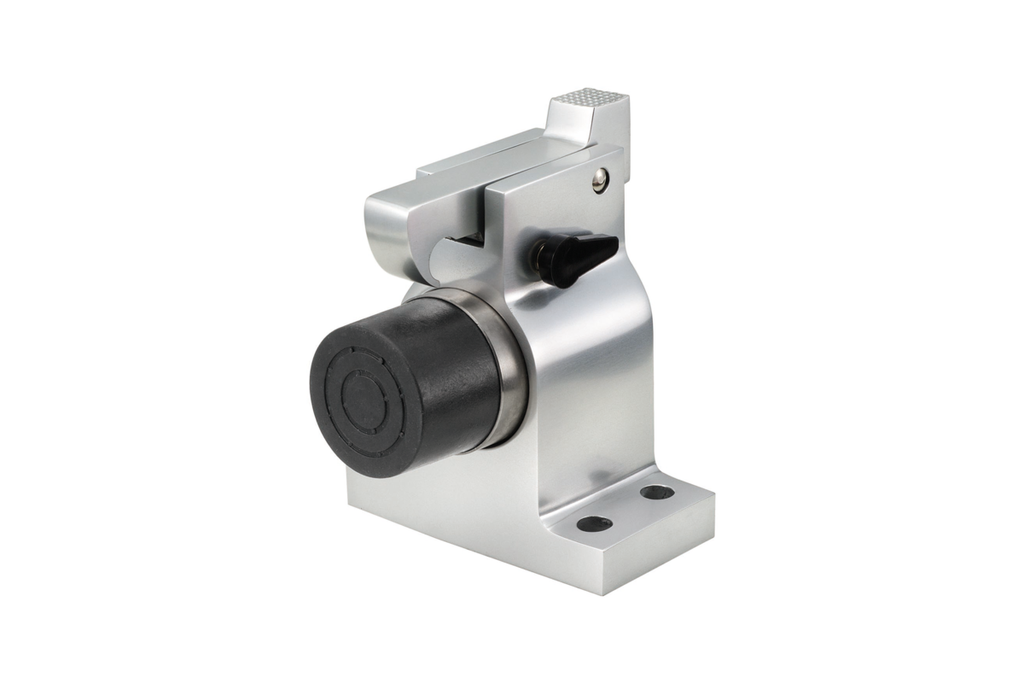

KWS 1010 Door holder with Hook
With the option to disable the lock function
Including a roller block (steel) for screwing on, for colour F1 - anodised, the roller block is in stainless steel / Inox
Excluding anchor bolt for extra secure mounting
Suitable for use in combination with a door closer
MATERIAL
Aluminium
MODE OF OPERATION
Foot actuation
DOOR WEIGHT
Max. 100 kg
FUNCTION
To hold the door in place, push it against the holder until the hook is engaged on the roller block. Acuating the hook while simultaneously pressing the door against the holder disengages the holding mode.
The lever, switched from position A to B (see product drawing), deactivates the holding mode: In this case, the door holder only has the function of a springloaded door buffer.
INSTALLATION
Mount the door holder on the floor with four screws and inserted plugs at the desired arresting point, which should be the furthest possible distance from the door hinge. Fix the roller block to the door at the corresponding position.
For height compensation, the additional use of the shim KWS 1610 (20 mm high) is recommended.
