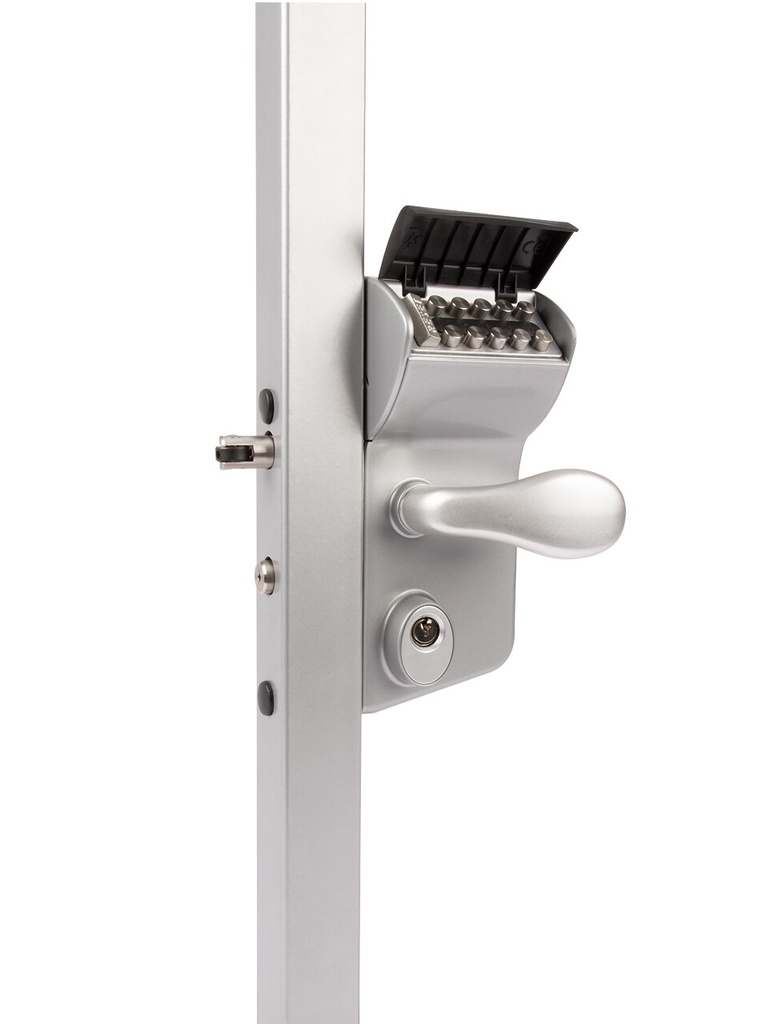

LOCINOX LMKQV2 VINCI - MECHANICAL SURFACE-MOUNTED CODE LOCK
| Gate type: Swing gate |
| Centres (mm): 60 |
| Backset (mm): 30 |
| Faceplate width (mm): Flat 31 |
| Faceplate length (mm): 160 |
| Fraceplate material: Stainless steel / Inox |
| Direction of rotation: Reversible |
| Lock case: With |
| Lock operation type: Mechanical code, Euro profile cylinder |
| Follower ⧄ (mm): ⧄ 8 |
| Panic function: Without |
The Locinox VINCI is a premium surface-mounted mechanical code lock for swing gates, designed for users who need reliable access control without depending on batteries or electricity. Thanks to its fully mechanical operation, this gate lock is especially suitable for outdoor environments where durability, ease of use and long-term reliability are essential.
This mechanical code lock features a sturdy aluminium housing combined with a stainless steel internal mechanism, making it highly resistant to intensive use and harsh weather conditions. Because no electrical connection is required, almost any gate can be equipped quickly and easily with efficient access control.
The double-sided keypad operation allows the lock to be opened by code from both sides of the gate. It is also possible to use different entry and exit codes, offering added flexibility in applications where controlled access and separate exit management are required.
Thanks to the 20 mm continuous adjustment of both bolts, the gate can be fine-tuned for optimal locking performance. The solid stainless steel deadbolt with 23 mm locking depth ensures secure and stable locking. For fast, accurate and highly precise installation, the use of the Drill-Fix drilling template is recommended..
The VINCI has also been developed with safety and user comfort in mind. It includes an automatic code reset after opening with the handles, an anti-code detection system with internal security pressure plate, and a polyamide cover plate that protects against rain and dust. The adjustable roller top ensures smooth and convenient closing of the gate.
This model is interchangeable with all Locinox surface-mounted swing gate locks, making it an excellent solution for replacements, renovations or standardisation in existing gate installations.
Specifications
✓ Surface-mounted mechanical code lock for swing gates
✓ Operates completely without batteries or electricity
✓ Aluminium housing with stainless steel internal mechanism
✓ Double-sided keypad operation
✓ Can be used with different entry and exit codes
✓ Quick and easy code setting or code change
✓ Extremely robust and user-friendly mechanical operation
✓ Automatic code reset after opening with the handles
✓ Anti-code detection with internal security pressure plate
✓ 20 mm continuous adjustment of both boltsn
✓ Solid stainless steel deadbolt with 23 mm locking depth
✓ Adjustable roller top for easy closing
✓ Polyamide cover plate protects against rain and dust
✓ Interchangeable with all Locinox surface-mounted swing gate locks
✓ ISO 9227 KTL / electrocoated lock box withstands 1000 hours salt spray test
✓ Drill-Fix drilling template recommended for fast and precise installation
Available in the following RAL colors
