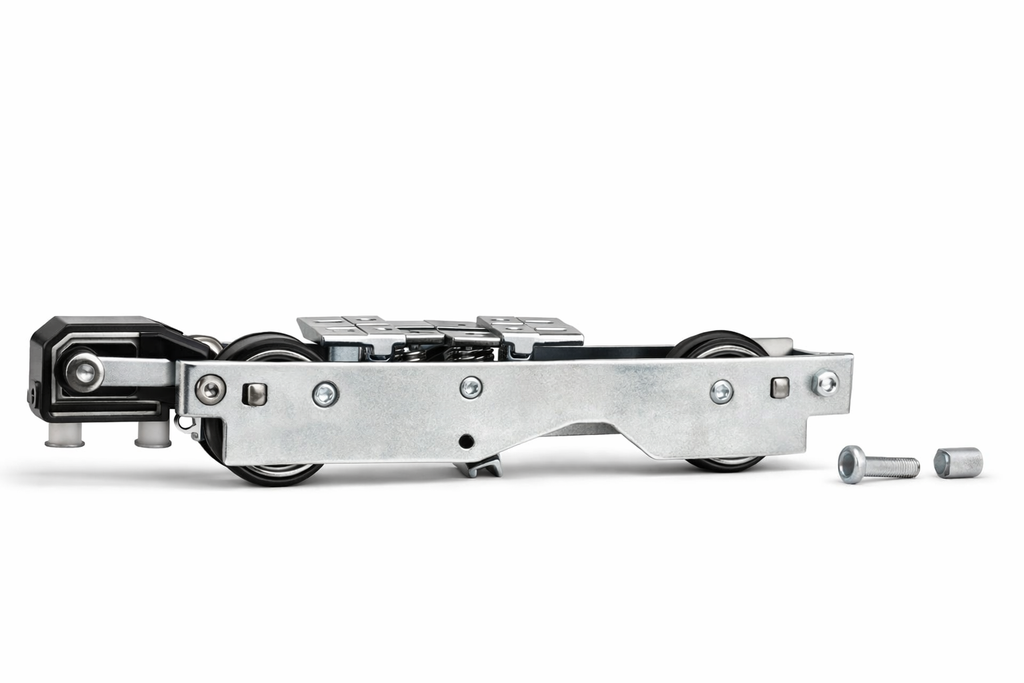

The MACO 105882 rear roller carriage is an essential hardware component for lift-sliding windows and lift-sliding doors with a 16 x 30 groove. This rear carriage ensures stable, controlled and durable guidance of the sliding sash. When used within a properly configured MACO lift-slide system, it contributes to smooth operation, reliable load distribution and long-term performance of the complete sliding element.

This roller carriage is suitable for applications in timber, PVC, aluminium or steel window and door constructions, as well as material combinations. The hardware is designed for vertically installed sashes and door leaves that are sliding, lift-sliding and, depending on the configuration, can also be used in specific tilt-slide or parallel-sliding systems.

The MACO 105882 is part of the MACO lift-slide hardware system and should therefore always be used together with matching and original MACO system components. Correct installation and the right combination with compatible fittings are essential for safe operation, correct load handling and preservation of the hardware performance.

Thanks to its solid construction and the use of high-quality materials such as steel, die-cast zinc and aluminium alloys, this roller carriage is designed for intensive and long-term use. Depending on the overall system configuration, it can be used in lift-slide hardware solutions for sash weights up to 200 kg, 300 kg or 400 kg.

For lasting performance, regular maintenance is important. Moving parts and locking points should be inspected periodically, lubricated and checked for wear. This helps keep the lift-sliding window or door operating smoothly, safely and reliably.

Specifications

✔ Brand: MACO

✔ Reference: 105882

✔ Type: rear roller carriage

✔ Application: lift-sliding window / lift-sliding door / window door

✔ Version: for systems with 16 x 30 groove

✔ Suitable for: vertical sliding elements in timber, PVC, aluminium or steel

✔ Part of: MACO lift-slide hardware system

✔ Function: guidance and support of the sliding sash

✔ Suitable within systems for sash weights up to 200 / 300 / 400 kg, depending on the overall hardware configuration

✔ To be used only with original MACO hardware components

✔ Materials: high-quality steel, die-cast zinc and aluminium alloys

✔ Surface treatment depending on material: galvanised, passivated or anodised

✔ Regular maintenance recommended for optimum operation and long service life
