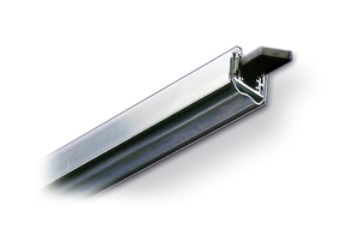

The FAPIM IGLOO DA 1051 is a wingless automatic draught excluder, specially designed for inward or outward opening timber or armoured doors. Featuring a premium-grade self-extinguishing silicone gasket, it offers excellent sealing performance against draughts, smoke, and fire.
Fire rated to DIN 4102
Smoke control compliant to DIN 18095
Wear-resistant & self-extinguishing silicone
Tested for 1,000,000 open/close cycles
For armoured profiles
For wooden profiles
Sylicon item
Fire-stop function
Smoke-stop function
Windproof function
Anti-noise function
Anti-deterioration functionThe gasket holder moves parallel to the floor thanks to a dual-action concealed mechanism, ensuring uniform pressure and perfect sealing, even on the outer edges of the door.
The trigger button projection is adjustable from 5 to 33 mm, and integrated safety springs prevent damage in case of incorrect settings or obstructions. The gasket holder can be easily removed for routine cleaning. Fully mortised installation is done via central screws after removing the gasket holder.
Available lengths:
DA1051090
Draught excluder length = 900mm
DA1051000
Draught excluder length = 1000mm
DA1051100
Draught excluder length = 1100mm
DA1051200
Draught excluder length = 1200mm
