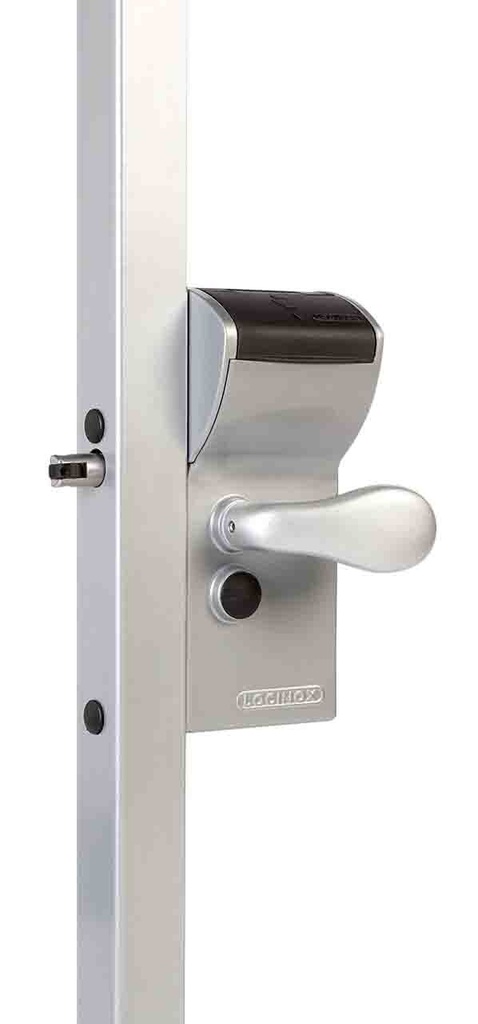

LOCINOX LFKQX1 FREE VINCI – MECHANICAL SURFACE-MOUNTED CODE LOCK WITH CONTROLLED ENTRY AND FREE EXIT
| Centres (mm): 60 |
| Backset (mm): 30 |
| Faceplate width (mm): Flat 31 |
| Faceplate length (mm): 218 |
| Fraceplate material: Stainless steel / Inox |
| Direction of rotation: Reversible |
| Lock case: With |
| Lock operation type: Mechanical code |
| Follower ⧄ (mm): ⧄ 8 |
| Panic function: Without |
| Self-locking: Ja |
The FREE VINCI is a high-quality surface-mounted mechanical keypad lock for swing gates, featuring an aluminium housing and a stainless steel internal mechanism. This lock is the ideal solution for adding access control without electricity or batteries. One side of the gate is protected by a code, while the other side allows free exit. This makes the lock particularly suitable for locations where controlled entry is required while maintaining easy exit.
Thanks to its quick and easy code setting or code change, the FREE VINCI is user-friendly in daily operation. The automatic code reset after opening with the handles improves security and helps prevent unwanted reuse of the code. In addition, the internal security pressure plate with anti-code detection offers extra protection against tampering.
Its 20 mm continuous latch adjustment allows precise alignment, ensuring optimal locking on virtually any gate. The adjustable rolling top provides smooth and easy closing. A polyamide cover plate protects the keypad against rain and dust, making the lock highly suitable for outdoor use.
The FREE VINCI is also interchangeable with all Locinox surface-mounted swing gate locks, making it an excellent option for both new installations and replacements. For fast and highly accurate installation, the use of the Drill-Fix drilling jig is recommended.
Specifications
✓ Surface-mounted mechanical keypad lock with aluminium housing and stainless steel internal mechanism
✓ One side code secured, other side free exit
✓ No electricity or batteries required
✓ Quick and easy code setting or modification
✓ Extremely robust and user-friendly mechanism
✓ Automatic code reset after opening with the handles
✓ Anti-code detection with internal security pressure plate
✓ 20 mm continuous latch adjustment
✓ Adjustable rolling top for easy closing
✓ Single-sided keypad operation with stainless steel push buttons
✓ Polyamide cover plate protects against rain and dust
✓ Interchangeable with all Locinox surface-mounted swing gate locks
✓ ISO 9227 KTL / electrocoated lock case resists 1000 hours salt spray test
Available in the following RAL colors
Features
